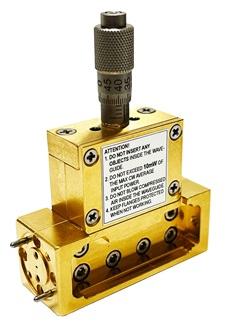

Variable attenuator
- Wide attenuation range
- Low VSWR
- Low insertion losses
- Full waveguide bandwidth
The VAXE Variable Attenuators are waveguide components for tunable signal leveling or reflection compensation in waveguide networks. The Attenuators consist of waveguide section with a resistive film evaporated on the mica surface. The Attenuators has 0 ÷30 dB minimum attenuation range. The VAXE Attenuators are available in four waveguide bands between 33 GHz and 170 GHz.
| Model | Frequency range, GHz | Waveguide size | Attenuation range, dB, min | VSWR max | Insertion loss, dB |
| VA-06E | 33 - 50 | WR - 22 | 0÷30 | 1.15 | 0.5 |
| VA-04E | 50 - 75 | WR - 15 | 0÷30 | 1.15 | 0.5 |
| VA-03E | 75 - 110 | WR - 10 | 0÷30 | 1.15 | 0.7 |
| VA-02E | 110 - 170 | WR - 6.5 | 0÷30 | 1.2 | 1.0 |
| VA-015E | 140 - 220 | WR - 5.1 | 0÷30 | 1.25 | 1.0 |
| VA-012E | 170 - 260 | WR - 4.3 | 0÷30 | 1.3 | 1.3 |
| VA-010E | 220 - 325 | WR - 3.4 | 0÷30 | 1.3 | 1.3 |
| VA-008E | 260 - 400 | WR - 2.8 | 0÷30 | ||
| VA-006E | 325 - 500 | WR - 2.2 | 0÷30 |
Ordering information
XX Operation range wave length, mm
C Control via:
RS - Round Dial Scale
μ - Micro Metric Screw
F Finish:
S - silver
G - gold
VA-XXE/C-F
Example: VA-06E/RS-G
Variable attenuator for 33 - 50 GHz frequency range, round dial scale, gold plated.
