Short
The FSXE Fixed Waveguide Shorts and the TSXE Tunable Shorts are available for creation of the shorts circuit conditions in waveguides.

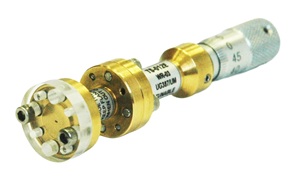

The TSXE Tunable Waveguide Shorts are movable shorts, adjustable through at least half a wavelength at the low end of the band. The TSXE Shorts consist of movable noncontacting choke plungers within a straight section of waveguide.
The FSXE and TSXE Shorts are provided in five waveguide bands between 33 GHz and 225 GHz.
| Model | Frequency range, GHz | Waveguide size | VSWR |
| FS-06E | 33 - 50 | WR - 22 | 30 |
| FS-04E | 50 - 75 | WR - 15 | 30 |
| FS-035E | 60 - 90 | WR - 12 | 20 |
| FS-03E | 75 - 110 | WR - 10 | 20 |
| FS-025E | 90 - 140 | WR - 8 | 20 |
| FS-02E | 110 - 170 | WR - 6 | 20 |
| FS-015E | 140 - 220 | WR - 5 | 20 |
| TS-06E | 33 - 50 | WR - 22 | 30 |
| TS-04E | 50 - 75 | WR - 15 | 30 |
| TS-035E | 60 - 90 | WR - 12 | 20 |
| TS-03E | 75 - 110 | WR - 10 | 20 |
| TS-025E | 90 - 140 | WR - 8 | 20 |
| TS-02E | 110 - 170 | WR - 6 | 20 |
| TS-015E | 140 - 220 | WR - 5 | 20 |
Ordering information
X Operation range wave length, mm
F Finish:
S - silver
TSXE-F
Example: TS06E-S
Tunable short for 33 - 50 GHz frequency range, silver plated.
